Maturity meter
Logs temperature from every sensor from the moment of placement.

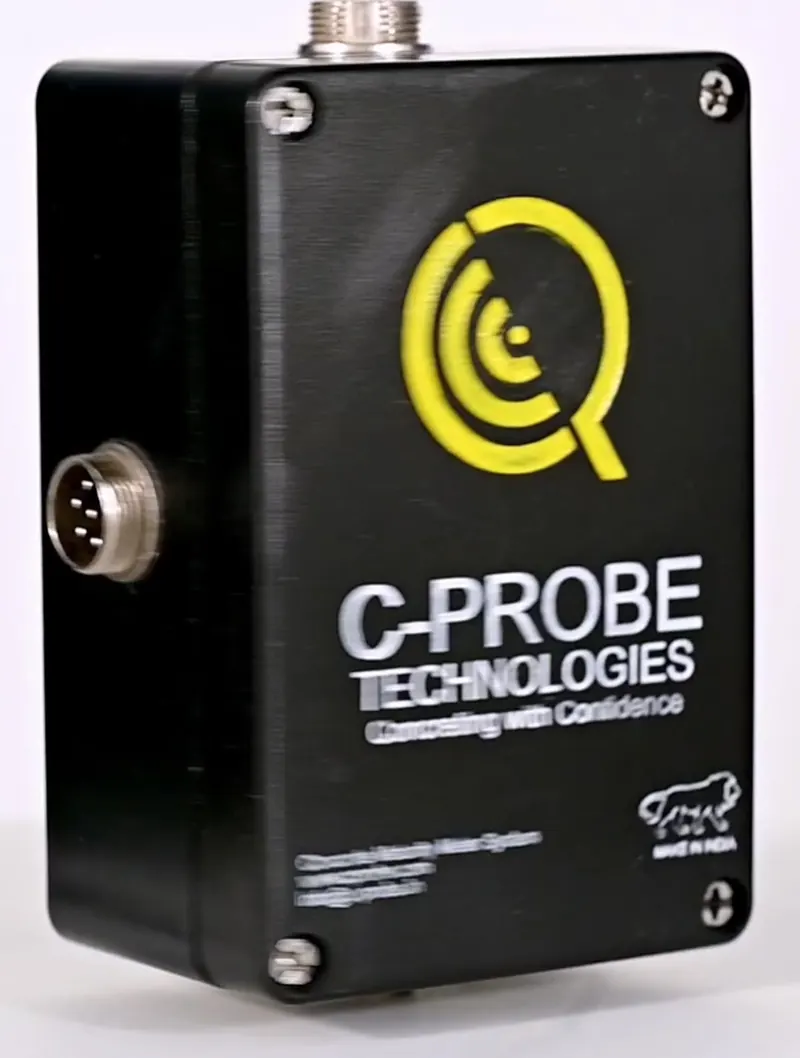

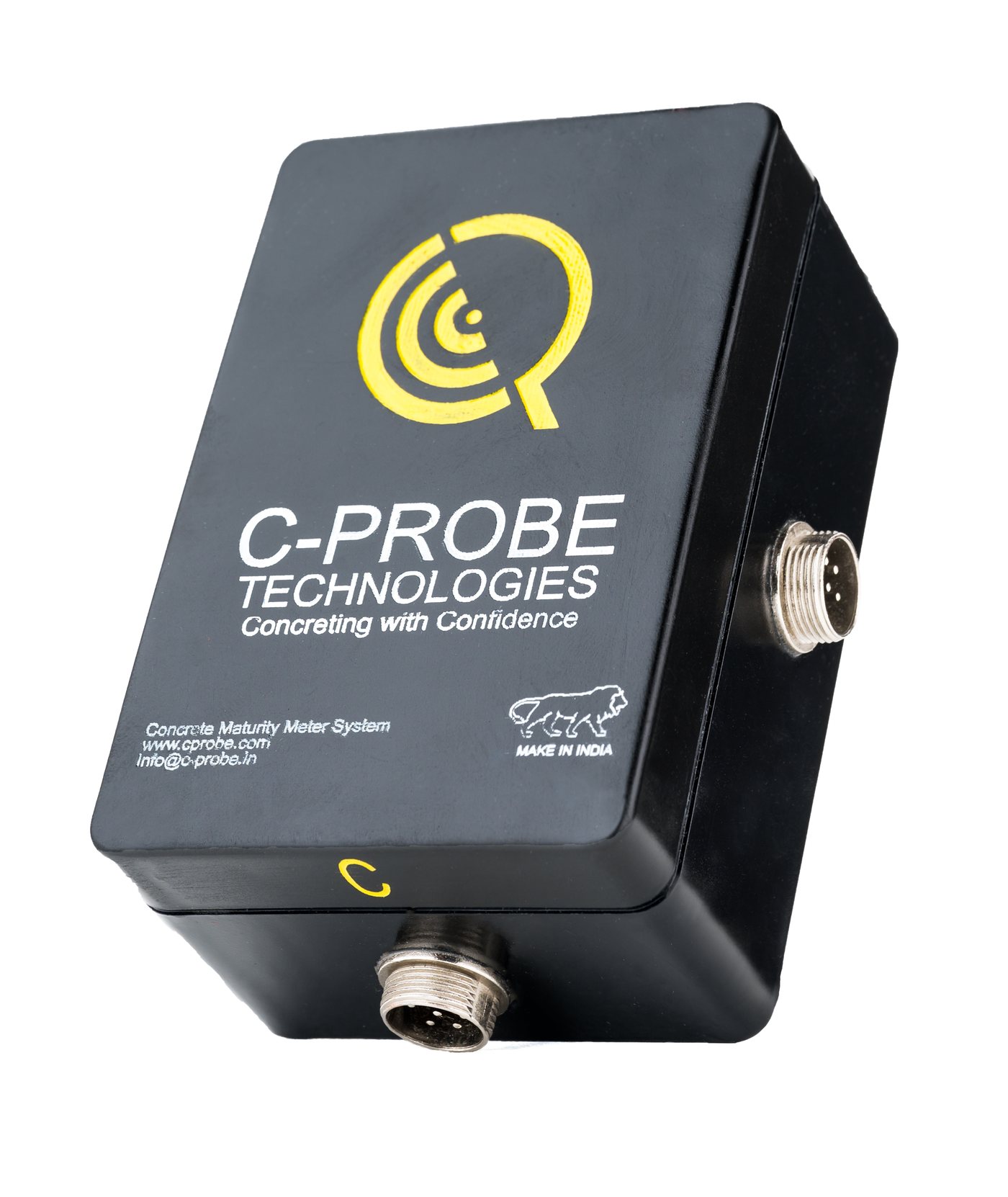

CP-CMMS concrete maturity meter system
Know the strength of every pour, in place.
Sensors cast into the element, a rugged meter at the pour, and live strength on your phone and laptop from fresh to hardened state.
- Rugged enclosureMade and tested for site conditions and site users.
- Made in IndiaIn-house electronics, manufactured in Pune with GIZMO.
- Locking connectorsReusable sensors plug in and out between pours.
- Wireless to the cloudReadings sync over site Wi-Fi, or LoRa on V3.0.
One system, three parts.

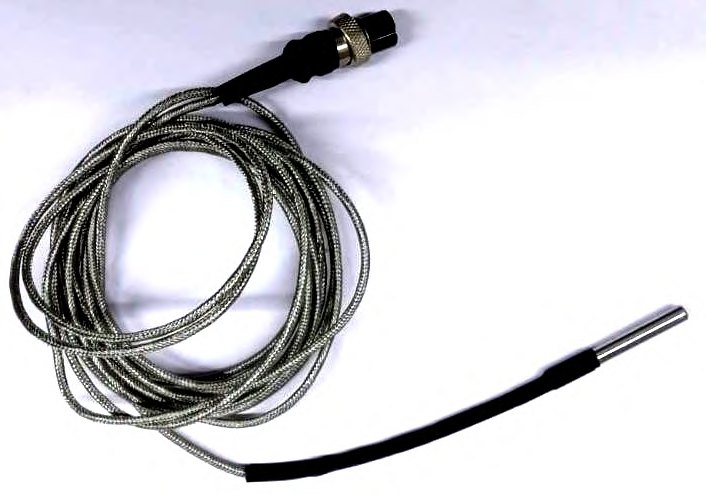

Digital sensors
Reusable 200+ times, with sacrificial sensors where retrieval isn't possible.

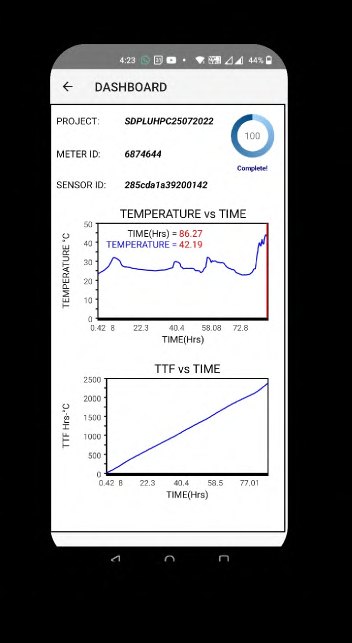

App, web app and site software
Live strength, temperature and TTF curves per sensor, project set-up, sensor comparison and printable reports.
From calibration to decision.
- Step 1
Calibrate the mix
Cubes tested at different ages build your mix's strength-maturity curve, usually in one to two days.
- Step 2
Deploy on the pour
Sensors go into the element at critical points, and the meter logs from the moment concrete is placed.
- Step 3
Watch strength live
Temperature-time factor converts to in-place strength through the calibration curve, per ASTM C1074.
- Step 4
Decide on data
Strip, stress, lift or load when the target is reached, with a report to prove it.
Compare models
Standard
- Best for
- Building and infrastructure sites
- Sensors per meter
- 4
- Sensor format
- Reusable and sacrificial, 3 m cable
- Cable reach
- 3 m and 10 m extensions
- Connectivity
- Site Wi-Fi
- Power
- Rechargeable, optional weatherproof supply
- Coverage
- About 4,000 sq ft of floor per meter
Precast VC-1.0
- Best for
- Precast plants, every shift
- Sensors per meter
- Up to 9 active, including ambient
- Sensor format
- 4-sensor cartridges, flush with mould base plate
- Cable reach
- Up to 20 m cumulative
- Connectivity
- Site Wi-Fi
- Power
- Continuous charging
- Coverage
- Two sensor points per element
Long-range V3.0
- Best for
- Large or remote sites
- Sensors per meter
- On request
- Sensor format
- Reusable and sacrificial
- Cable reach
- 3 m and 10 m extensions
- Connectivity
- LoRa
- Power
- Solar
- Coverage
- On request
| Specification | Standard | Precast VC-1.0 | Long-range V3.0 |
|---|---|---|---|
| Best for | Building and infrastructure sites | Precast plants, every shift | Large or remote sites |
| Sensors per meter | 4 | Up to 9 active, including ambient | On request |
| Sensor format | Reusable and sacrificial, 3 m cable | 4-sensor cartridges, flush with mould base plate | Reusable and sacrificial |
| Cable reach | 3 m and 10 m extensions | Up to 20 m cumulative | 3 m and 10 m extensions |
| Connectivity | Site Wi-Fi | Site Wi-Fi | LoRa |
| Power | Rechargeable, optional weatherproof supply | Continuous charging | Solar |
| Coverage | About 4,000 sq ft of floor per meter | Two sensor points per element | On request |
All models: maturity method per ASTM C1074, sensors reusable 200+ times, readings on app, web app and site software, training and technical support included.
Standards
ASTM C1074
Standard practice for estimating concrete strength by the maturity method. The basis for every strength value CP-CMMS reports.
IS 456
India's code of practice for plain and reinforced concrete.
IRC 112
Indian Roads Congress code of practice for concrete road bridges.
Ready to build with intelligence?
Get a personalised demo on your own mix and site conditions. We calibrate with your team, deploy on your pour and train your engineers.
